| Beginnings of the CAD model August 2013 |
 |
| General look of the machine |
 |
| 3 D printed plastic test parts for the movements |
 |
| Checking the fit and accuracy |
 |
| tacking the main frame |
 |
| movement parts done in steel |
 |
| capstan pulleys for the X,Y,Z drives |
 |
| drive assembly |
 |

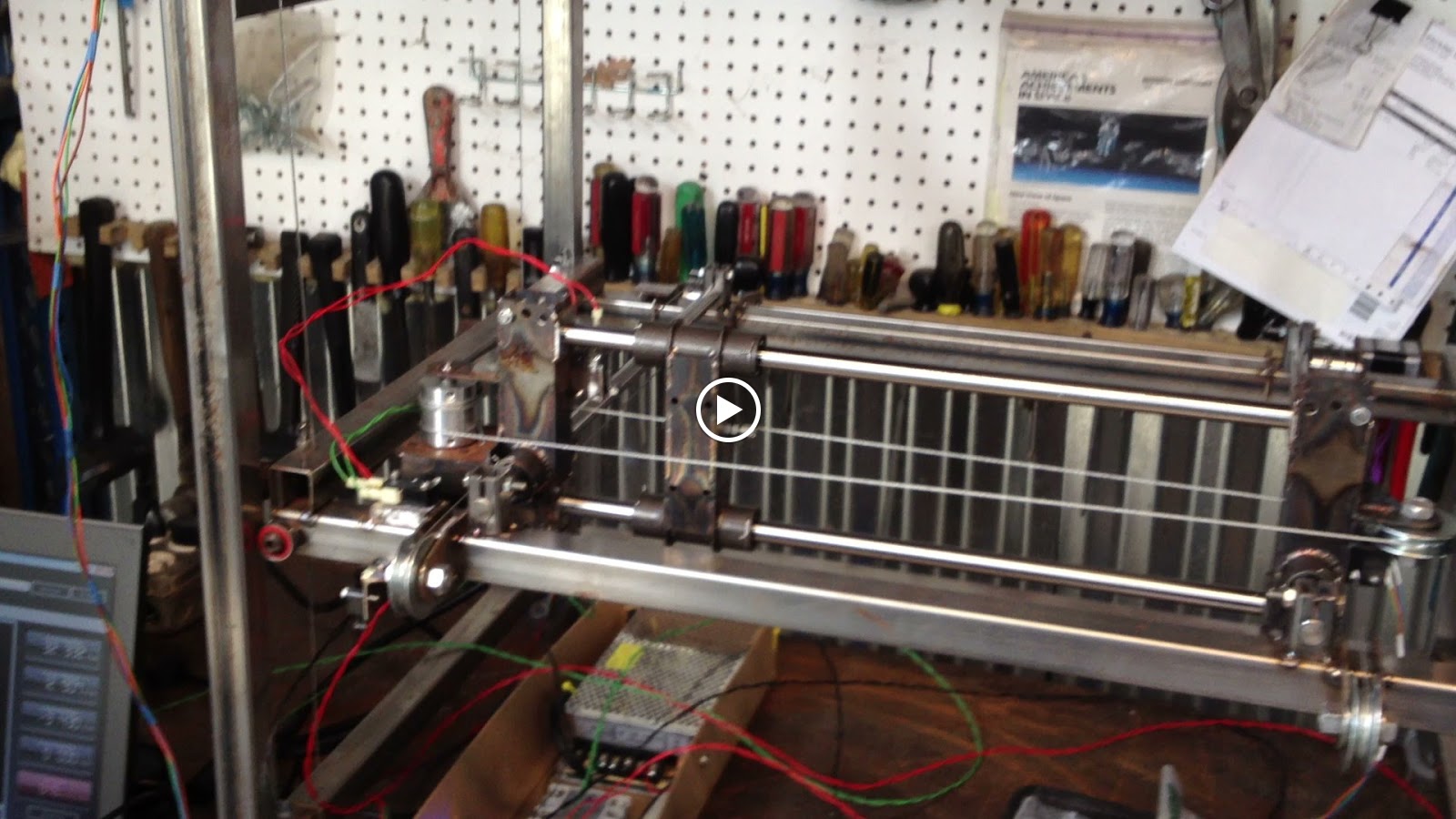

| first movements test |
 |
| electronics enclosure flattened for cutting |
 |
| CAD for wire feeder assembly |
 |
| wire feeder fit check |
 |
| electronics assembly |
 |
| torch and wire nozzle attachments |
 |
| first sliced model movement tests |
 | ||
| First welding tests 1 April 2014 |
 |
| Looking to solve a high frequency cross over problem |
 |
| Starting to add shielding on all motion control cabling |
